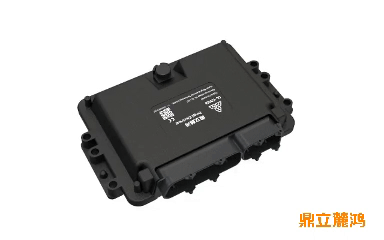

Dingliluhong DL-CR56P controller is a universal controller designed for electrical control systems of mobile vehicles and construction machinery.
Flexible port configuration
The DL-CR56P controller has rich input/output channel multiplexing, and can flexibly configure ports, so that the control system can be built more flexibly, quickly and accurately.
Standard programming
Support in accordance with IEC61131-3 programming standards, convenient users for rapid application development.
High protection level
The DL-CR56P controller has a compact design with extremely high mechanical shock and electrical protection characteristics, and the protection grade is IP67, which is suitable for a variety of harsh and demanding working environments.
Total input/output: 56 (32 inputs /24 outputs)
Processor: CotexM4 main frequency 180MHz
Programming language: CodeSys3.5

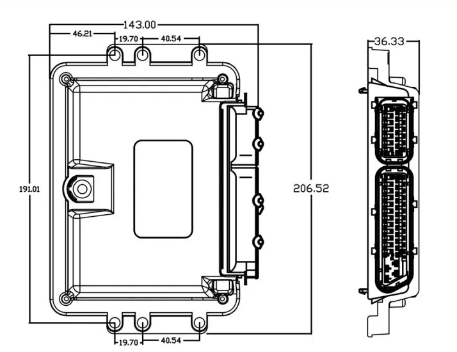

Size: 207*143*36mm
Case: Aluminum alloy
Protection level: IP67
Dingliluhong DL-CR56P controller can be widely used in various types of mobile vehicles and machinery manufacturing and other industrial control fields.
